WASTE & REFUSE EQUIPMENT

ACE LUGGER HOIST SYSTEM

Built for Scrap & Heavy Hauling Since 1938

The Ace Lugger Hoist System is America's most trusted lugger truck — purpose-built for waste management and container handling fleets. Load, transport, and unload 6–30 cu yd containers with up to 60,000 lbs of lift capacity, 32% better weight distribution, and the durability to keep your fleet on demanding routes for 30+ years.

REQUEST A QUOTE
DOWNLOAD SPEC SHEET ↓
60,000 LBS
Max Lift
120°+
Dump Angle
30 YRS
Service Life
32%
Better Weight Distribution

WHY THE ACE LUGGER

📈

MAX LEGAL PAYLOAD

Elevated hinge pin + longest wheelbase pushes container forward. More front axle weight, more legal payload per haul.

🛡️

BUILT TO LAST 30 YEARS

1/2 inch A500 steel walls, 3/8 inch one-piece steel floor, 100k-lb lift chains. Units still running after 50+ years.

📦

6–30 CU YD RANGE

Super Series for Class 8 high-volume container transport, Utility Series for lighter pickup applications. One partner, every fleet size.

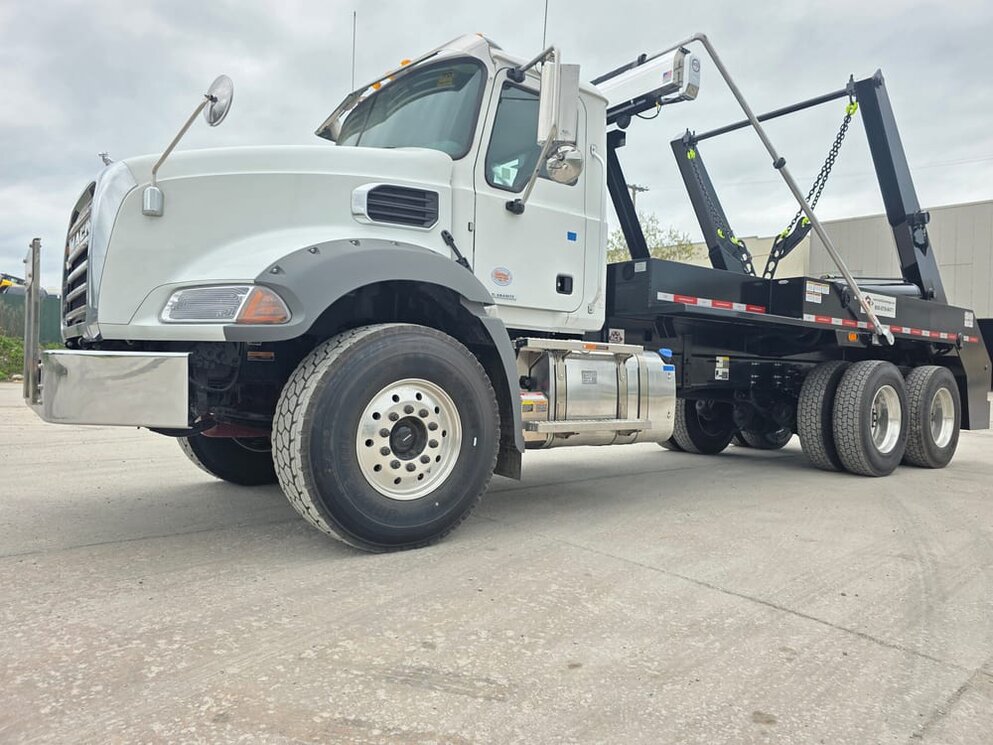

Ace Lugger structural engineering
STRUCTURAL ENGINEERING

STEEL BUILT TO OUTLAST THE JOB

1/2 inch A500 steel walls, 3/8 inch one-piece floor, 1/2 inch wear strips, 100k-lb chains, containers sit 12 inches above bed.

LIFTING POWER

153,000 LBS PER ARM CYLINDER

9.5 inch bore cylinders at 2500 PSI, chrome shafts, 120 inch arms, 120+ degree dump angle, wireless remote available.

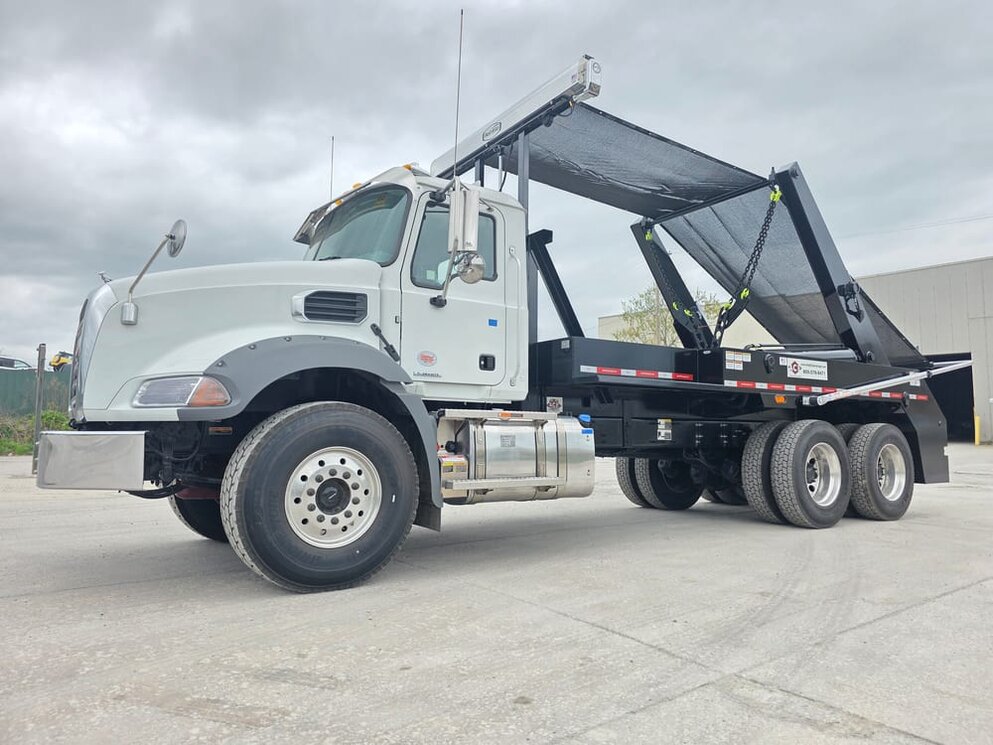

Ace Lugger lifting power

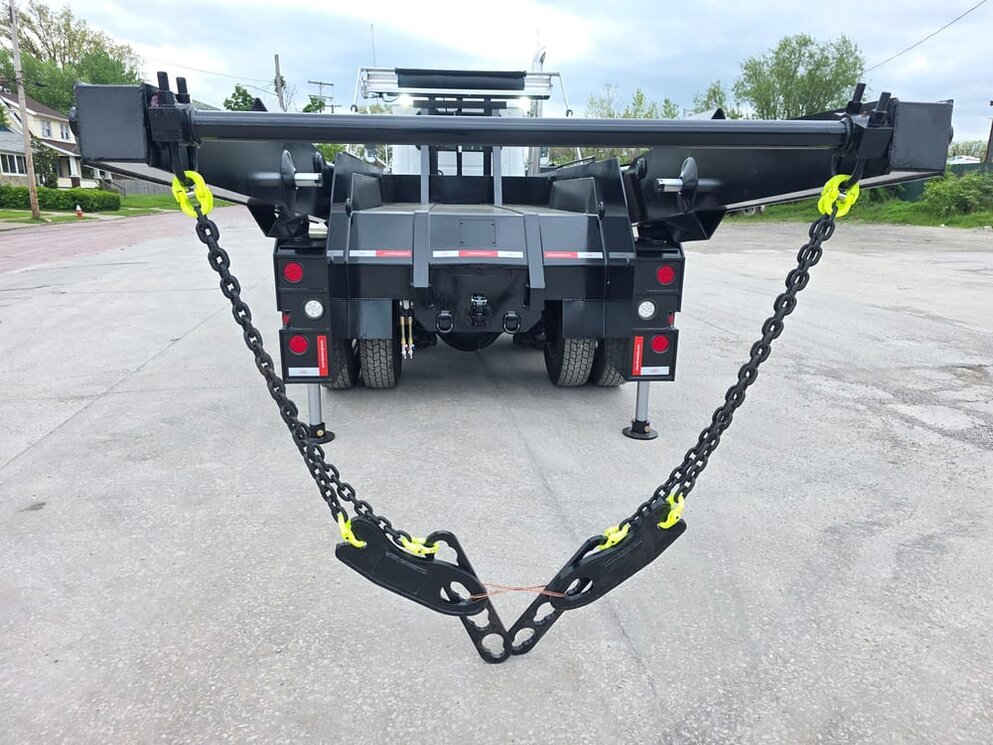

Ace Lugger weight distribution
WEIGHT DISTRIBUTION

32% BETTER THAN ANY COMPETITOR

Elevated hinge pin moves container forward on chassis, maximizing front axle load legally.

ACE LUGGER PRODUCT RANGE

SUPER SERIES

40,000–60,000 lb, 6–30 cu yd, Class 8 chassis.

UTILITY SERIES (57-RC-14)

Pickup-mounted, 1–3 cu yd, lightweight work.

HOIST TRAILER

Trailer-mounted, use existing containers, no new truck needed.

TECHNICAL SPECIFICATIONS

SPECIFICATION
VALUE
Lift (Super)
60,000 lbs
Lift (Std)
50,000 lbs
Dump Angle
120°+
Container Range
6–30 cu yd
Arm Length
120 inches
Cylinder Bore
9.5 in / 2500 PSI
Lift per Cylinder
153,000 lbs
Walls
1/2 in A500
Floor
3/8 in Steel
Chains
100k-lb
DOWNLOAD SPEC SHEET ↓

ADD AN ACE LUGGER TO YOUR FLEET

🔧

RENT

Access the largest vocational rental fleet in North America. No capital expenditure required.

View Rental Fleet →
💰

BUY

Financing available through Custom Truck Capital with competitive rates and flexible terms.

Explore New Equipment →

📍

SERVICE

Full service support at 40+ locations with certified driveline technicians and parts inventory.

Find a Location →
GET STARTED

READY TO HAUL MORE WITH THE ACE LUGGER?

Contact our team to get a custom quote, schedule a demo, or learn more about financing options.
