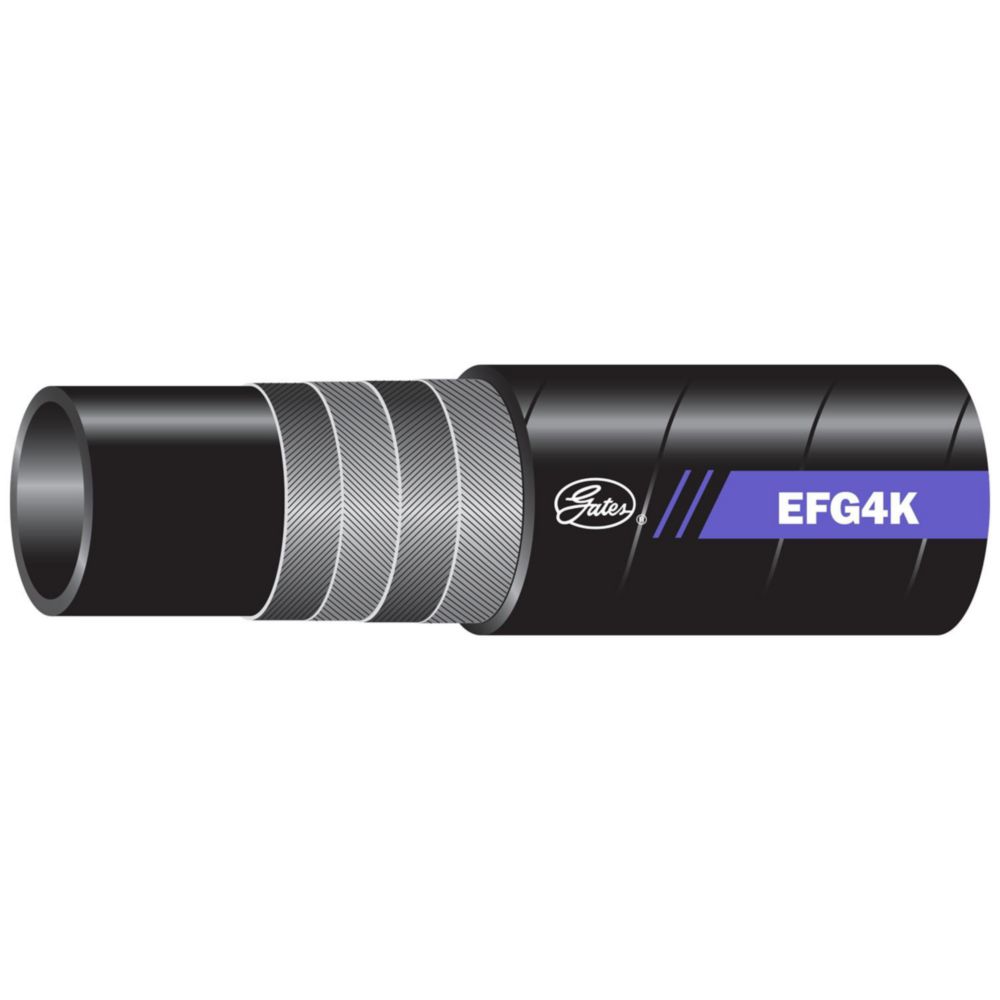

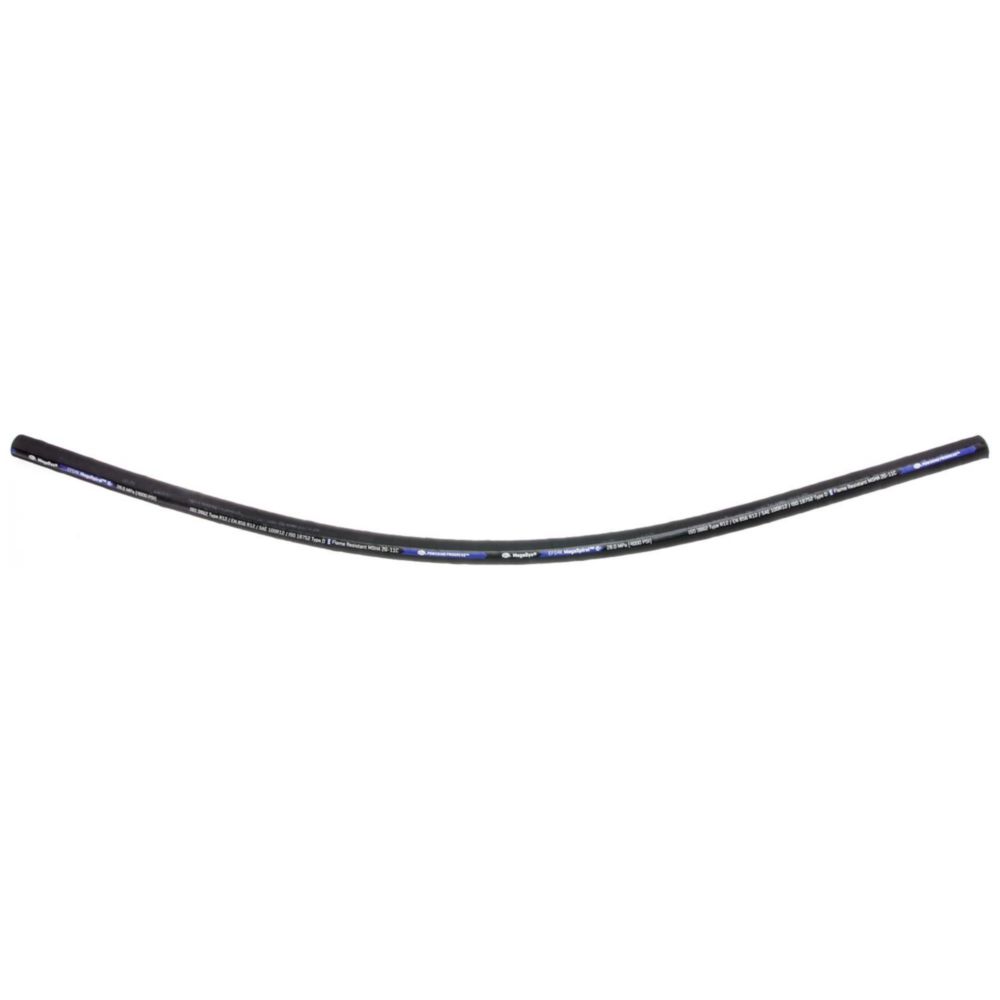

EFG4K Spiral Wire Hose 4000


EFG4K Spiral Wire Hose 4000
12EFG4KXCTN
Part Number:
70831Eligible for FREE GROUND Shipping
Unit of Measure:
Feet
Part Number:
70831
Item Length:
29.85
Item Width:
28.98
Item Height:
8.96
Item Weight:
85.70
VMRS Category:
065-007-006
Brand:
Gates Ⓡ
Thread Size (TPI):
Unspecified
Inside Diameter (in):
0.75
Material:
Unspecified
Outside Diameter (in):
1.21
Pressure Capacity (PSI):
4000
- EFG4K hose is recommended for very high–pressure, high–impulse applications. Exceeds all requirements of ISO 18752 Grade D (except OD for -6 to -10), SAE 100R12, EN 856 R12 and ISO 3862 Type R12. Compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum–based fluids.
- The optional MegaTuff™ cover lasts up to 300 times longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945 and offers superior ozone and weathering resistance.
- The optional XtraTuff™ cover lasts up to 25 times longer than standard hose.
- Available in 121' through 200' continuous lengths.
- For use with GlobalSpiral™ Couplings [G20 Series], GlobalSpiral One-Piece Couplings [G21 Series, -20 Only] and Stainless Steel Spiral Couplings [G18 Series].
- Superior flex impulse performance: Tested to 1,000,000 impulse cycles at 50% of EN 856 R12 and SAE 100R12 bend radii.
- Meets Flame Resistance Acceptance Designation MSHA 2G.
010462
010462X
010466X
10462
70334
70831
721-12
FC136-12
FC136-12RL
FC659-12
FC659-12RL
GH493-12
GR12-12X200CL
GR12-12X200
GR12-12X50BX
