LOCATIONSREEL TRAILERS FOR RENT
Whether you’re looking for single or multi-reel trailers for rent, Custom Truck has a great range from which to choose. Our reel trailers are built to exceptionally high standards by top manufacturers such as Reelstrong, Brooks Brothers, Stellar, Felling, and our sister company, Load King.
Versatile reel trailers
With generous payload and reel capacity limits, our reel trailers are incredibly versatile. If you want to rent reel trailers that will quickly meet all your needs, get in touch with us now at 833-305-RENT (7368). We offer outstanding service to our customers in all parts of the U.S. and Canada.
There are no filters available for this category at this time.
There are no filters available for this category at this time.
806-4850
- A single coil pipe trailer
- Heavy-duty carousel rollers
- Easy to use and maintain
- GVWR of 3000 lbs
- Turntable holds coils with a height of up to 48 in
- Features a hand lever pull brake, static front jack and more.
806-4860
- Self-Loading Single Coil Pipe Trailer
- 3,000 lb. Payload Capacity
- Adjustable Uprights Hold 48 in. to 72 in. Internal Diameter Coils
- Hand Brake
806-5110
- Self-loading single reel trailer
- 5,600 lb. payload capacity
- Reel capacity 60 in. by up to 120 in.
- Telecom version with Figure 8 Assembly
- Aux. hydraulic port
- Single 8,000lb axle
Forestry Equipment You Can Count On
From non-CDL buckets to high-reach booms and chip bodies, our forestry equipment is trusted by professionals nationwide and powered by Load King™ and Terex®. Backed by coast-to-coast service, flexible rentals, and in-house expertise, we keep your crew working efficiently from canopy to cleanup.

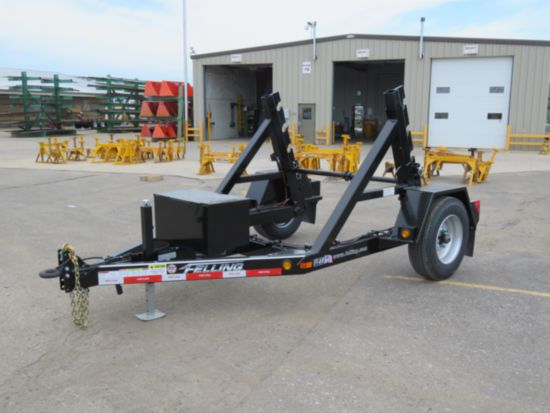

806-5000
- Self-loading single reel trailer
- 7,200 lb. payload capacity
- Reel capacity 120 in. dia. by 60 in.
- 2 7/8 in. reel arbor bar
- Single 8,000 lb. axle
806-5015
- Self-loading single reel trailer
- 7,200 lb. payload capacity
- Reel capacity 120 in. dia. by 53.5 in.
- 16 in. Bronze Tension Brake
- 2 7/8 in. reel arbor bar
- Single 8,000 lb. axle
806-5130
- Self-loading single reel trailer
- 7,500 lb. payload capacity
- Reel capacity 60 in. by up to 120 in.
- Telecom version with Figure 8 Assembly
- Aux hydraulic port
- Tandem 6,000 lb. axles
806-5145
- Turret-base, single reel trailer
- 96" x 60" x 8,000 lb. reel capacity
- Pinless PowerLock™ reel securement
- Oversize turret bearing
- Smooth low-friction payout
- Heavy-duty galvanized frame
806-5010
- Single reel trailer
- NOT self-loading
- 8,000 lb. payload capacity
- Reel capacity 96 in. dia by 60 in.
- 2.50 in. reel arbor bar
- 16 in. ventilated reel brake
806-5150
- Turret-base, single reel trailer
- Hyraulic power wind system
- 3,300 ft-lb hydraulic retriever
- 96" x 60" x 8,000 lb. reel capacity
- Pinless PowerLock™ reel securement
- Heavy-duty galvanized frame
806-5100
- Self-loading single reel trailer
- 8,500 lb. payload capacity
- Reel capacity 120 in. dia. by 60 in.
- 2.5 in. reel arbor bar
- Single 9,000 lb. axle
806-5200
- Self-loading single reel trailer
- Torsion axle
- Lifting arms that can lift reels as little as 18 in.
- Powerful Power Winder at 3,300 ft./lb. of torque for retrieving old lines
806-5105
- Self-loading single reel trailer
- 8,500 lb. payload capacity
- Reel capacity 125 in. dia. by 64 in.
- POWERLOCK II auto-locking system
- 2.5 in. reel arbor bar
- Single 10,000 lb. axle
Industry Leading Hi-Rail Equipment
As North America’s largest Hi-Rail fleet dealer, Custom Truck One Source™ combines nationwide reach with specialized expertise. Whether you’re renting or buying, you’re backed by the Source for rail-ready performance.
806-5205
- Self-loading single reel trailer
- 12,500 lb. payload capacity
- Reel capacity 60 in. by up to 108 in.
- 3 in. reel arbor bar
- 16 in. aluminum bronze disc brake
- Hydraulic power wind
806-5225
- Single cable reel trailer
- 15,000 lb. of load capacity
- Self loading single reel trailer
- Power wind with brakes
806-5310
- Self-loading single cable reel trailer
- Tandem 16,000 lb.
- Electric brakes on all axles
- Reel capacity for a 120 in. by 66 in. reel and a 3 in. shaft
806-5210
- Self-loading single reel trailer
- 13,600 lb. payload capacity
- Reel capacity 70 in. by up to 120 in.
- 2 7/8 in. reel arbor bar
- 16 in. vented bronze disc brake
- Hydraulic take-up/pay-out and level wind
806-5215
- Self-loading single reel trailer
- 14,000 lb. payload capacity
- Reel capacity 60 in. by up to 108 in.
- 2 7/8 in. reel arbor bar
- 16 in. vented bronze disc brake
- Hydraulic take-up/pay-out and level wind
806-6300
- 100K expandable reel trailer
- For large electrical conductor reels
- Max reel sizes up to 14 ft. tall X 10 ft. wide and 100,000 lb.
- Two Hydraulic lift towers to self-load reels
- Tandem axles and air brakes
806-5550
- 2-reel self loading trailer
- (2) 5,000 lb. payload capacity
- Reel Capacity 125 in. dia. by 60 in.
- 2 1/2 in. reel arbor bar
- Rear swing-open loading gate
- Low center-of-gravity design
806-5560
- 2-reel material reel trailer
- Load capacity of 12-13,800 lbs
- Includes tension brake
- Trailer features tandem axles, LED tail lights, electrical connectors and more
806-5620
- Self-loading three reel trailer
- 3,500 lb. payload capacity (3)
- Reel capacity 125 in. dia by 60 in.
- 2.25 in. reel arbor bar
806-5605
- Three Reel Trailer
- Not Self-Loading
- (3) 6,600 lb. payload capacity
- Reel capacity 84 in. dia by 60 in.
- 2 7/8 in. reel arbor bar
- 16 in. annealed naval brass disc brake
Load King Water Trucks
Every tank is built in-house by Load King™, our trusted manufacturing division. From dust control to construction and mining, Custom Truck One Source™ delivers non-potable water trucks built for performance, durability, and efficiency.
806-5650
- Turret-base, three-reel trailer
- 24,000 lb. total reel payload capacity
- Reel Capacity 84 in. dia. by 60 in. wide
- 2.5 in. reel arbor bar
- Tandem-dual 22.5k axles with air brakes
806-5601
- Three reel trailer
- Not self loading
- (3) 9,000 lb. payload capacity
- Reel capacity 96 in. dia by 60 in.
- 2.5 in. heavy-duty arbor bar
- 16" ventilated reel brakes
806-5820
- Three reel trailer
- Three 30,000 lb. reel stands
- Equipped with air brakes
- GVWR of 75,000 lbs.
- Reel access ladders
- 5 in. diameter arbor bars
806-5805
- Four Reel Trailer
- Not Self-Loading
- (4) 8,500 lb. payload capacity
- Reel capacity 76 in. dia by 60 in.
- 2 7/8 in. reel arbor bar
- 16 in. annealed naval brass disc brake
806-5800
- Four Reel Trailer
- Not Self-Loading
- (4) 8,500 lb. payload capacity
- Reel capacity 84 in. dia by 60 in.
- 2 5/8 in. reel arbor bar
- 16 in. bronze alloy reel brake
806-5830
- Five-reel trailer
- Electric brakes
- GVWR coming in at 52,000 lb.
- Trailer is NOT self-loading
