Load King RH3229 End Dump Trailer

HomeTrailersLoad King RH3229 End Dump Trailer

Load King RH3229 End Dump Trailer

The Load King RH3229 End Dump trailer contains the capacity of 29 CU. YDS with an overall length of 34′. Load King utilizes an 8″ five-stage inverted cylinder model for its lifting cylinder making it perfect for construction industries. This end dump will reach a 43-degree dump angle with all 8 wheels on the ground. Your trailer can come equipped with either a manual or an electronic tarp option, giving you the ability to customize your end dump for your exact needs.

  • REQUEST PRICING
  • VIEW SPEC SHEET
  • WARRANTY POLICY
  • CHECK AVAILABILITY

Specs

Capacity:
29.0 CU. YDS
Tub Length:
32’
Overall length:
34’
Overall Width:
102”
Dump angle:
43 degrees
5th wheel height:
48”
Estimated weight:
13,960 lbs
Frame:
Proprietary two piece tub design
Axle Spacing:
50.5”
Axle Capacity:
Two 27,500 lbs axles, ¾” walls
Air lift tailgate:
82” clearance

LENGTHS

lengths

Load King manufactures end dumps in lengths from 28 to 35 feet.

TWO PIECE TUB

two-piece-tub

The tub on the Load King End Dump is of two piece construction. Unlike our competitors that have a vertical seam every eight feet.

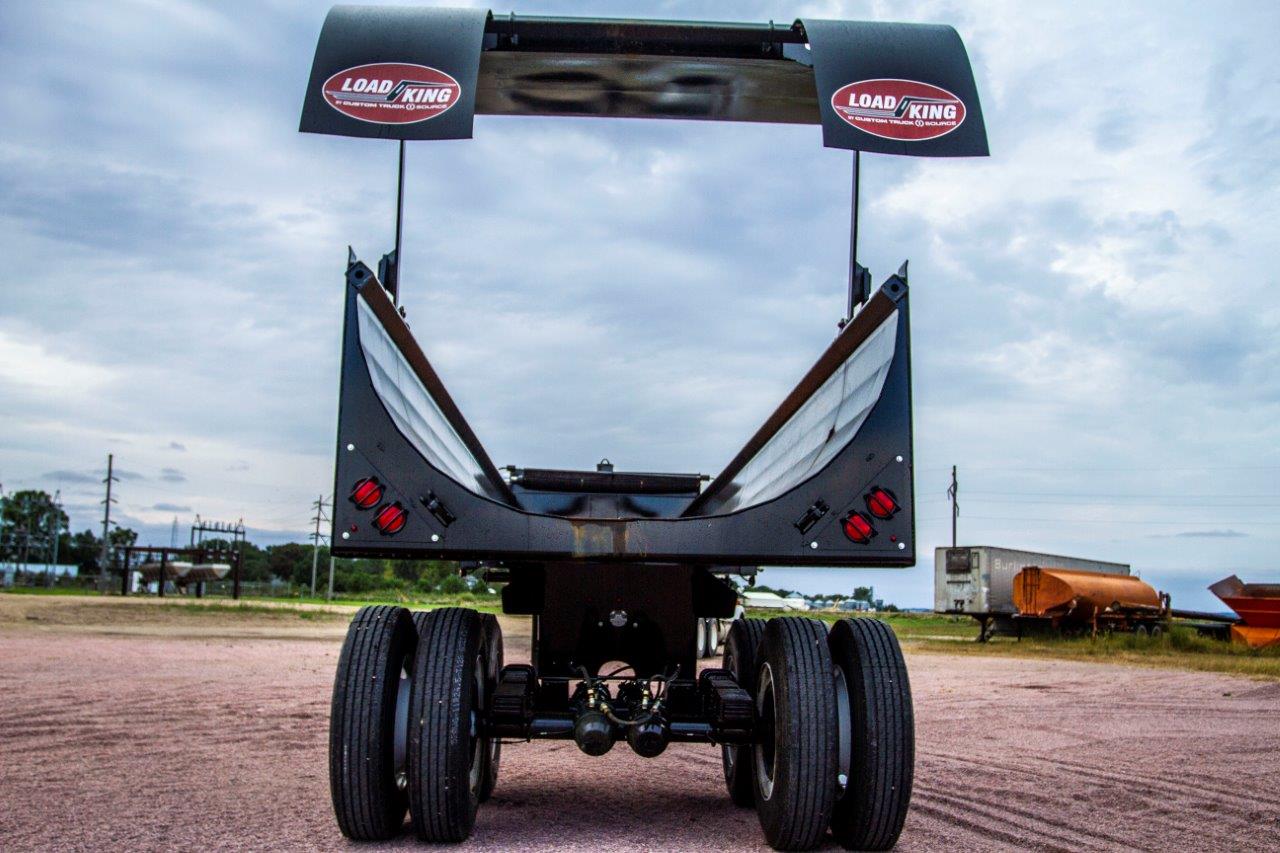

HIGH LIFT TAIL GATE

high-lift-tail-gate

End Dumps manufactured by Load King have a High Lift Gate with 87" clearance.

LIGHTING

lighting

The Rear Lighting System on the Load King End Dumps consists of LED Lights, a Grote Sealed Wiring System, Dual Intensity Rear Clearance Lights (Grote Micro Nova) - all contained within a 3 bolt removable light bracket for easy repairs.

AVAILABLE TARP SYSTEMS

available-tarp-systems

Your Load King End Dump can come equipped with either a Manual or an Electric Tarp Option. This gives you the ability to customize your trailer for your exact needs.

SUSPENSION

suspension

The Pedestal is unitized to the bottom of the tub to prevent cracking in high stress areas.

CONSTRUCTION

construction

The Load King End Dump Tub is constructed of 1/4" 450-Hard-Ox with 3/16" front and rear tailgates.

DUMP ANGLE

dump-angle

The Load King End Dump will reach a 43 degree dump angle with all 8 wheels on the ground.

CUSTOM HOIST

custom-hoist

Load King utilizes an 8" - 5 Stage Inverted cylinder for its lifting cylinder.

TOP RAIL

top-rail

Load King End Dumps have a Tubular Steel Rail that is installed in a Self Shedding configuration.

TAIL GATE ADDITIONAL FEATURES

tail-gate-additional-features

Load King uses Dual action Air-Cylinders for the Gate Locks. It also has a Manual Gate Release on the Center Bolster.

LANDING LEGS

landing-legs

Pin type non load bearing leg.
