LK-2060-40-3

HomeTrailersLK-2060-40-3

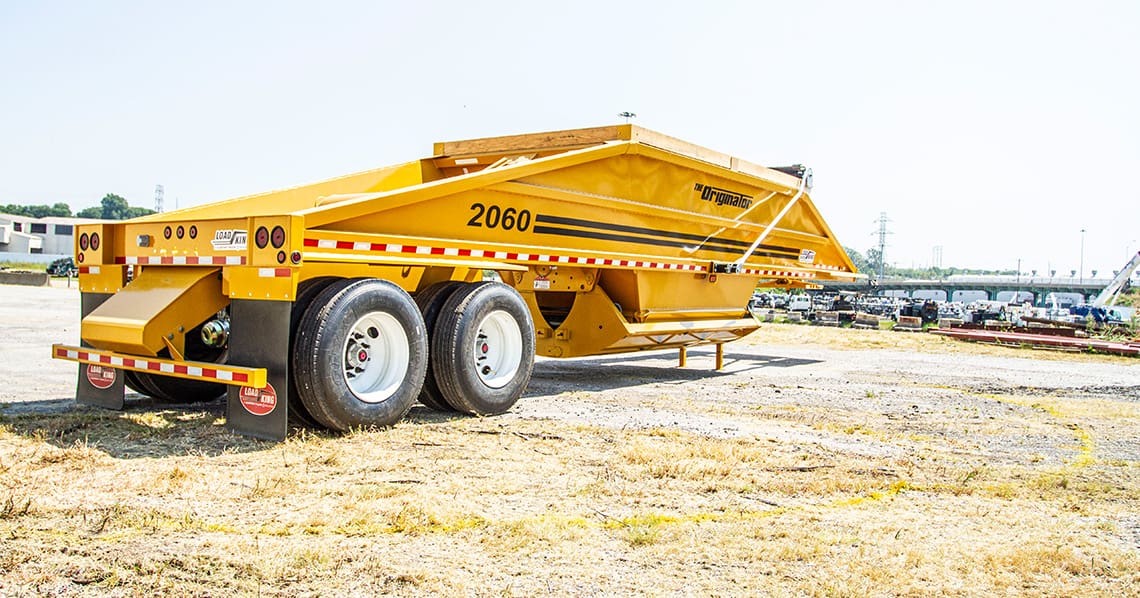

Load King LK-2060-40-3 Bottom Dump Trailer

Load King manufacturers a couple different options of Bottom Dump trailers, including this LK 2060-40-3. With a 20 cubic yard struck capacity, this trailer has an estimated weight of 15,400 lbs and carries a rated net payload of 60,000 lbs, or 30 tons. This bottom dump trailer has a hopper dump opening of 64″ x 106″ and an upper hopper opening of 90″ x 187″.

  • REQUEST PRICING
  • VIEW SPEC SHEET
  • WARRANTY POLICY
  • CHECK AVAILABILITY

Specs

Capacity:
20 cubic yards
Payload:
60,000 lbs
Estimated Weight:
15,400 lbs
Overall length:
40'
Overall width:
102"
Overall height:
105"
Hopper dump opening:
64" x 106"
Upper hopper opening:
90" x 187"
5th wheel height:
48"
Frame:
100,000/80,000 steel construction
Axle Spacing:
49"
Axle Capacity:
Three 22,500 lbs axles

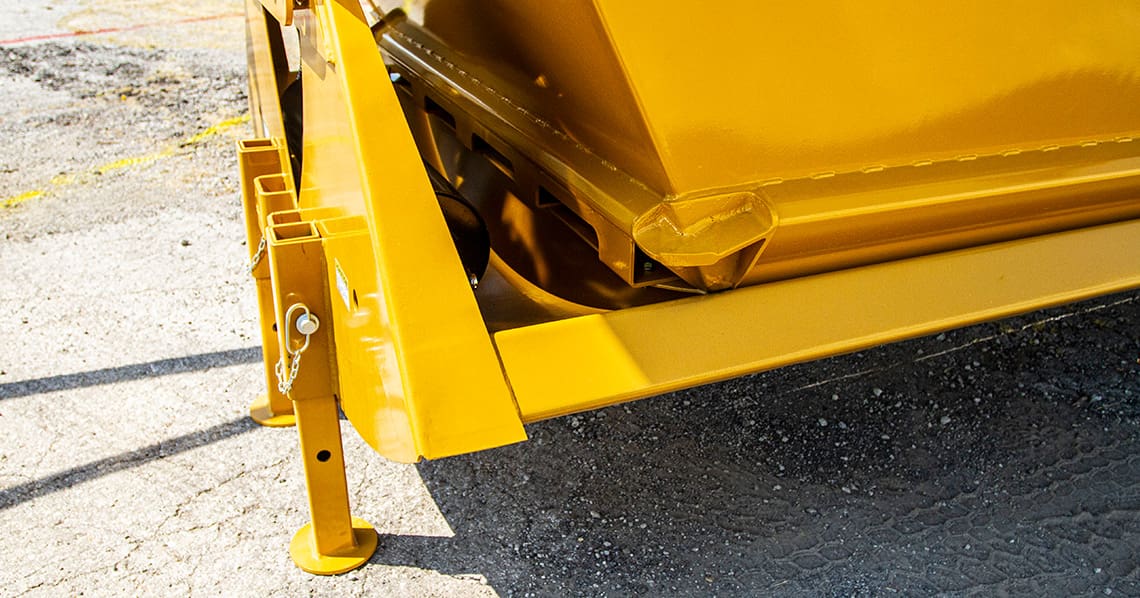

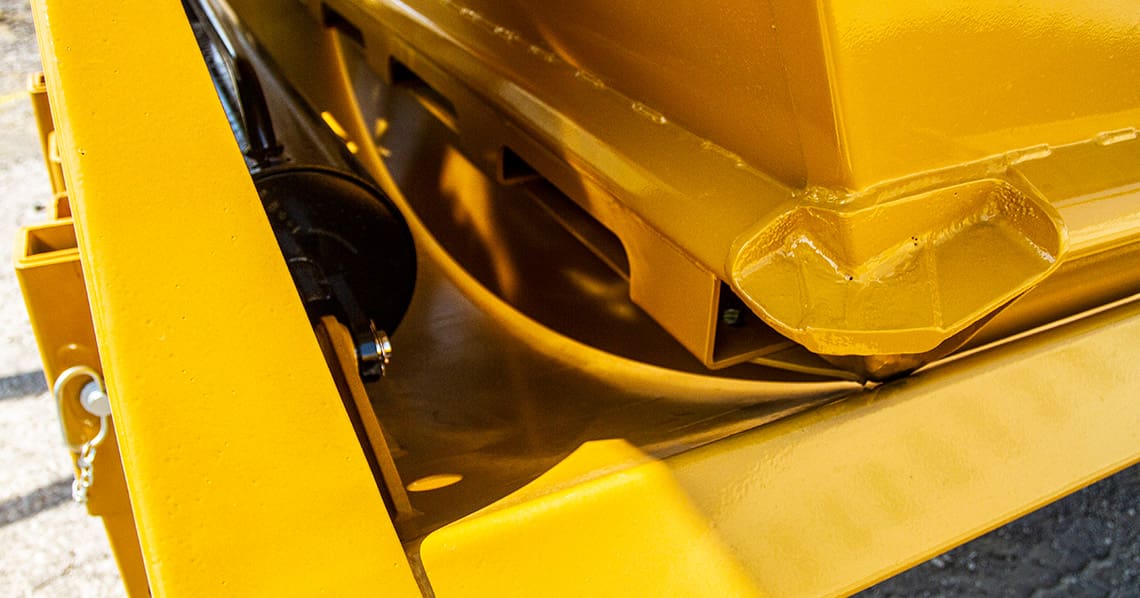

LOWER HOPPER CASTING

lower-hopper-corner-casting

Using corner castings increases the durability of these critical stress points. This Load King feature is unique to the industry and significantly contributes to the life span of the trailer.

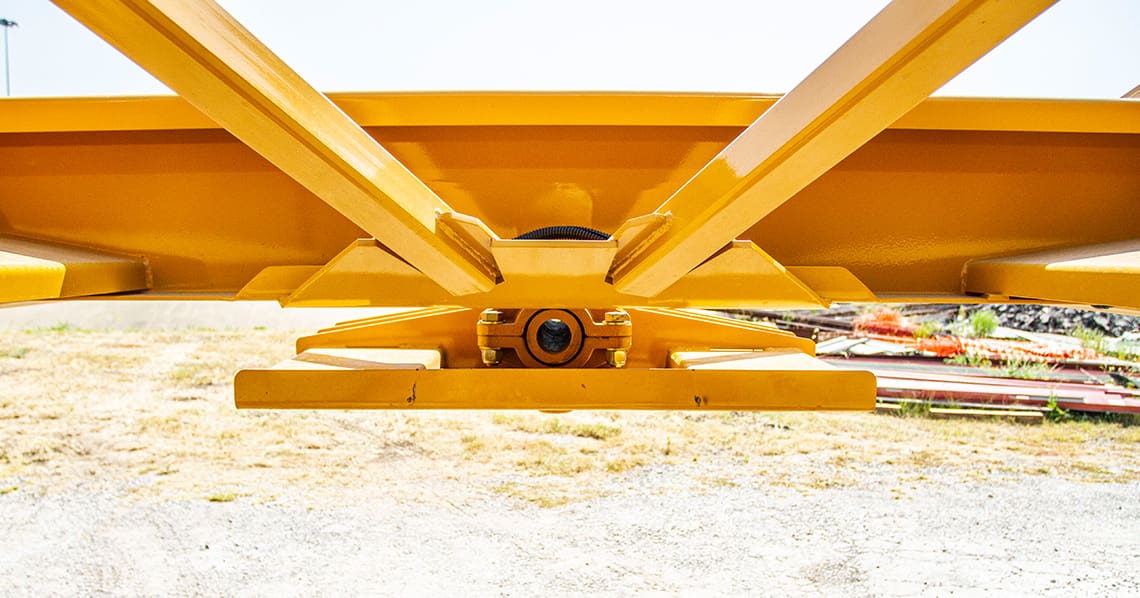

RUBBER BUSHED FIFTH WHEEL PLATE

rubber-brushed-fifth-wheel-plate

The Rubber Bushed Fifth Wheel Plate oscillates from side to side with the tractors fifth wheel. This four way oscillation protects the frame from twisting, thus reducing stress on the structural framework.

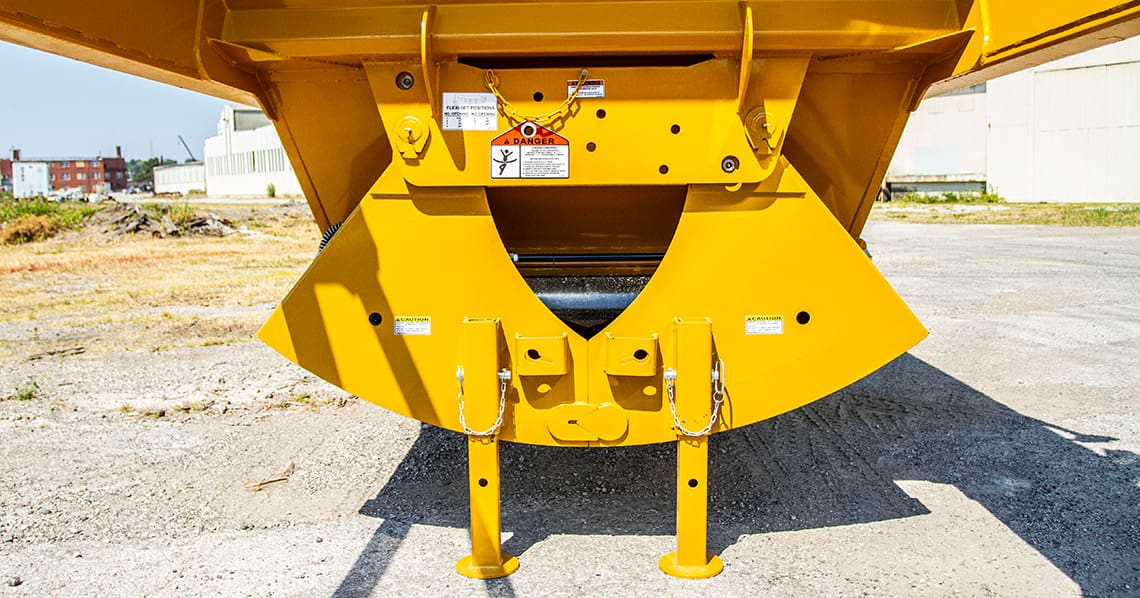

BOLT-ON PUSH BLOCK

bolt-on-push-block

This Load King design prevents damage from the blade locking into the recess and putting harmful pressure on the frame.

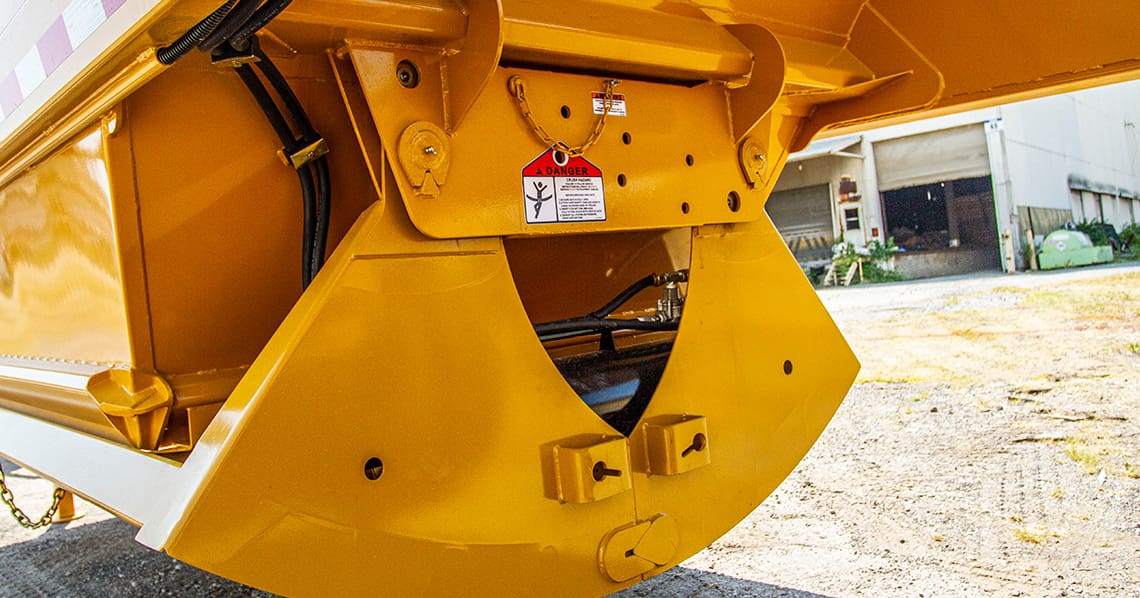

SUPERIOR GATE DESIGN

superior-gate-design

The Load King Gate provides a tight fit every time. We utilize replaceable bearings at the pivot point of the gate resulting in longer life and reduced maintenance cost.

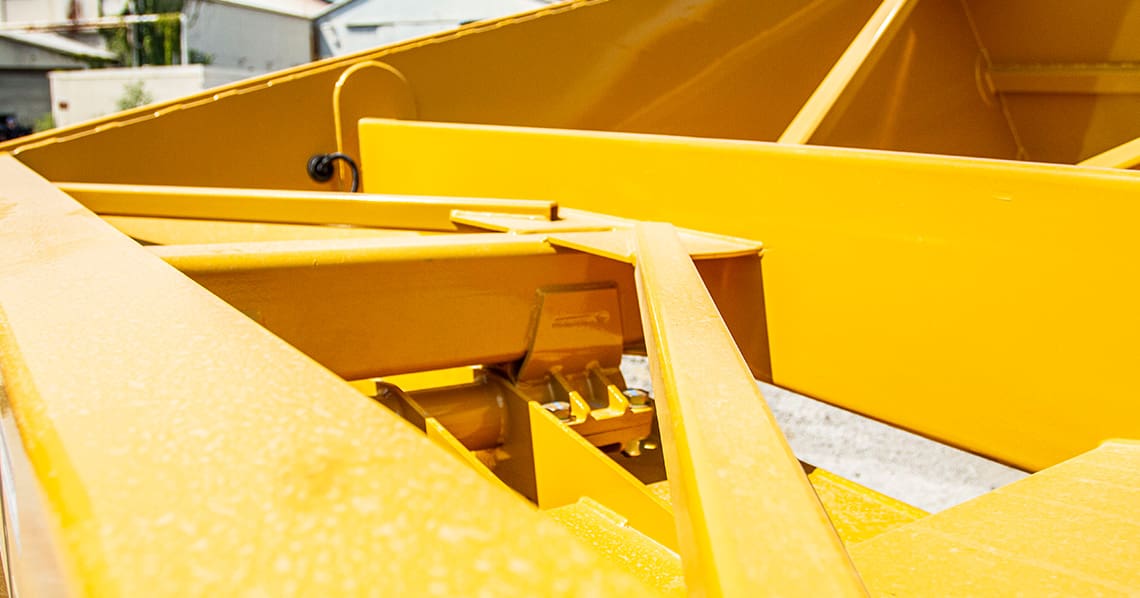

MULTIPLE GATE LIMITER SETTINGS

multiple-gate-limiter-settings

Load King provides eight gate opening positions in eight inch increments. This feature allows multiple options for a more controlled discharge of product.

APITONG SIDEBOARDS

apitong-sideboards

The Originator uses 7.25" Apitong hardware sideboards in lieu of pine which is commonly used. The durability of this hardwood sideboard provides a longer lasting life span, reducing operating costs.

REMOTE PENDANT & IN-CAB CONTROLS

remote-pendant-in-cab-controls

This standard feature provides easy and precise operation from inside the cab or from the remote pendant. This feature is safely stored in a protected compartment.

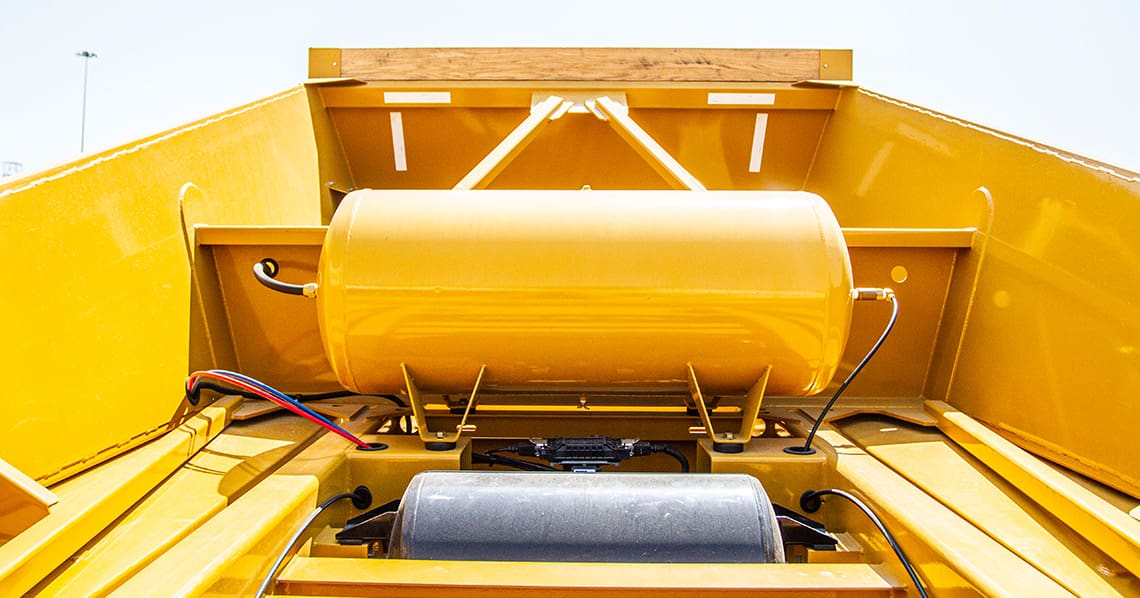

60 GALLON AIR TANK

60-gallon-air-tank

Larger air tanks allow for extended operation of the gate for applications.

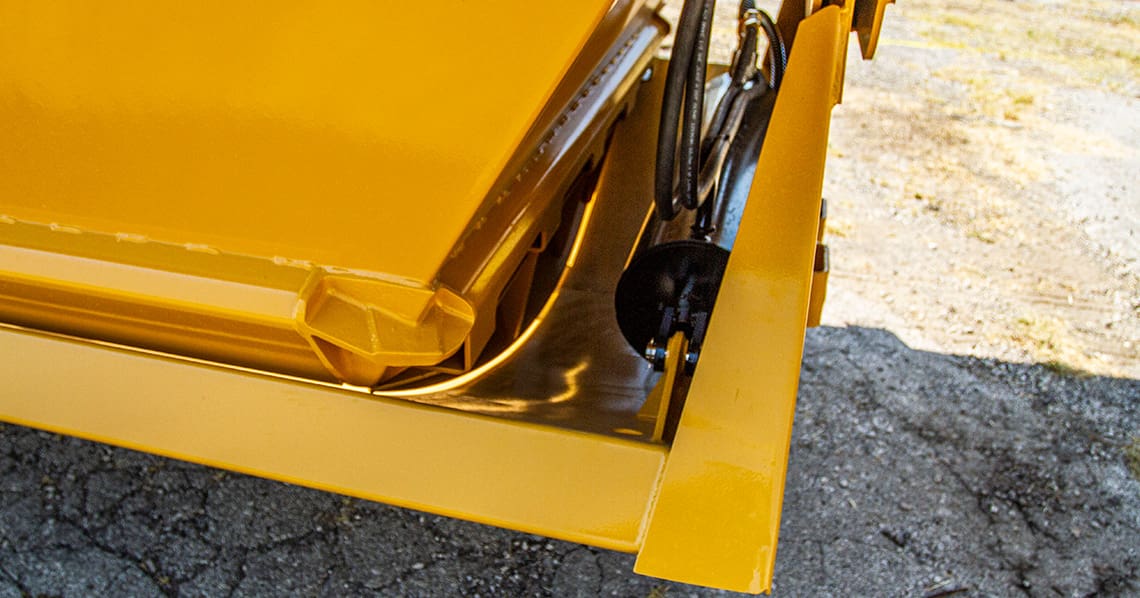

8 INCH GALLON CYLINDERS

8-inch-gallon-cylinders

The cylinders are located outside of the hopper and inside gate for protection against damage.

FRONT FENDERS

front-fenders

Sturdy front fenders are an available option for all Originator models. They are particularly suited for users who do not have fenders on their tractors.

HOPPER OPENINGS

hopper-openings

With the industry's largest hopper openings. The 90" x 100" upper opening allows for an easier and quicker loading operation. The lower hopper opening of 64" x 108" enables faster discharge. This advantage allows more cycles per day.

ADVANCED SUPERSTRUCTURE

advanced-superstructure

A structural network, consisting of braces extending throughout the unit regulates twisting and flexing. Rear horizontal braces in conjunction with the subframe and extra deep cross headers, control flexing created at the push block. Front and rear diagonal braces control transverse movement adding structural integrity to the upper hopper.
