Click here to view a full spec sheet.

Innovative design features and production standards is why Load King has long been a leader in the construction trailer industry. The Load King Tag & Tilt line incorporates features such as low deck height, adjustable suspension, pierced beam construction, and many more to provide you with a trailer that will exceed your needs. When considering safety, quality, and overall dependability, Load King goes beyond the industry standard.

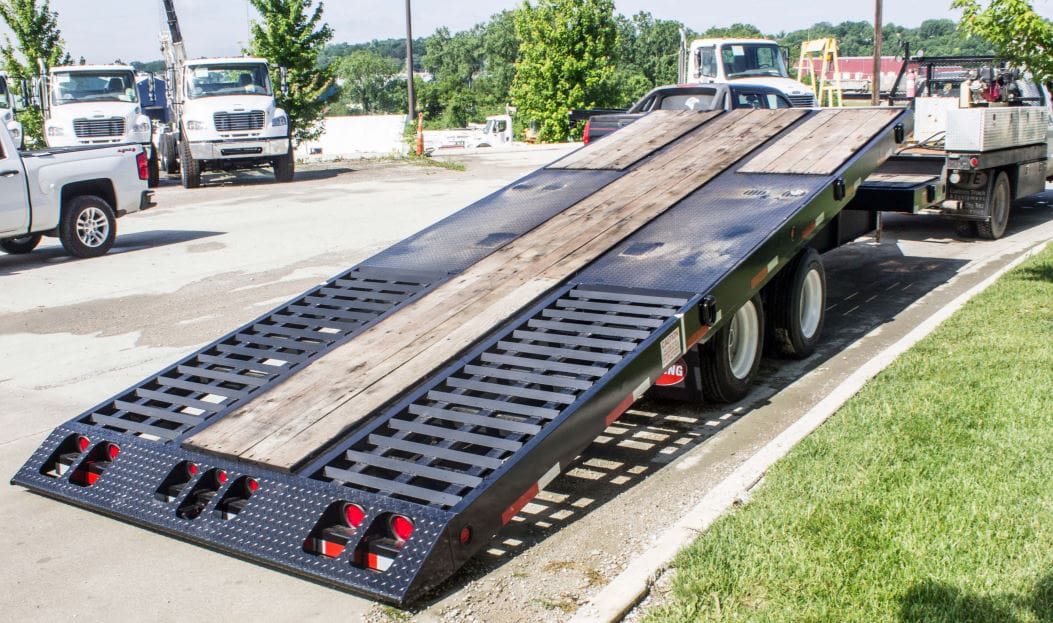

The LK 20TT is a 20-ton Tag & Tilt trailer manufactured by Load King. The trailer is equipped with two axles, a tilting platform and stationary deck, carrying loads up to 40,000 lbs (or 20 tons).



Some of our favorite features are:

  • 40,000lb. Capacity @ 55mph (GVWR 49,100 lbs.)
  • 34’-3”OAL, 8’6” OAW, 24’ Tilting Platform, 4’ Stationary Deck & 37” Unloaded Deck Height
  • Single main beam with no curling or splicing. The main beams are built through a cold form process and are not heated to maintaining structural integrity
  • Pierced main beam construction with 6” one piece interlocking crossmember I- beams
  • Hutch 9700 multi-point spring with radius rod axle tracking adjustment
  • 4 Position Cast pintle eye, 25K 2 Speed Jack & 215/75R 17.5 Tires
  • Cushion Cylinders to allow smoothly in loading and uploading.
  • Cantilever U-bolt safety lock maintains safe transportation and is easily adjustable to maintain a tight connection to eliminating any possibility of deck rattle.
