Click here to view a full spec sheet.

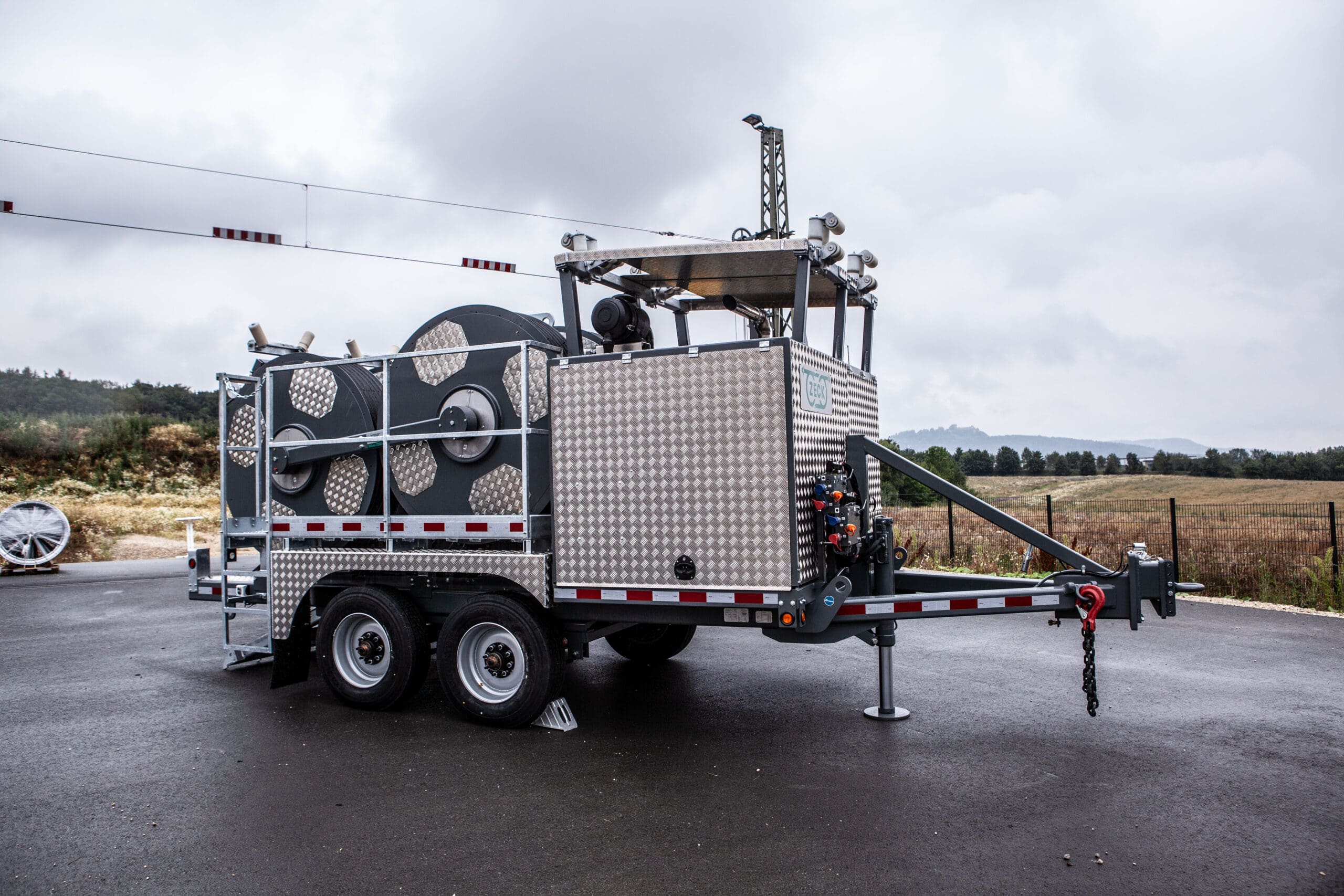

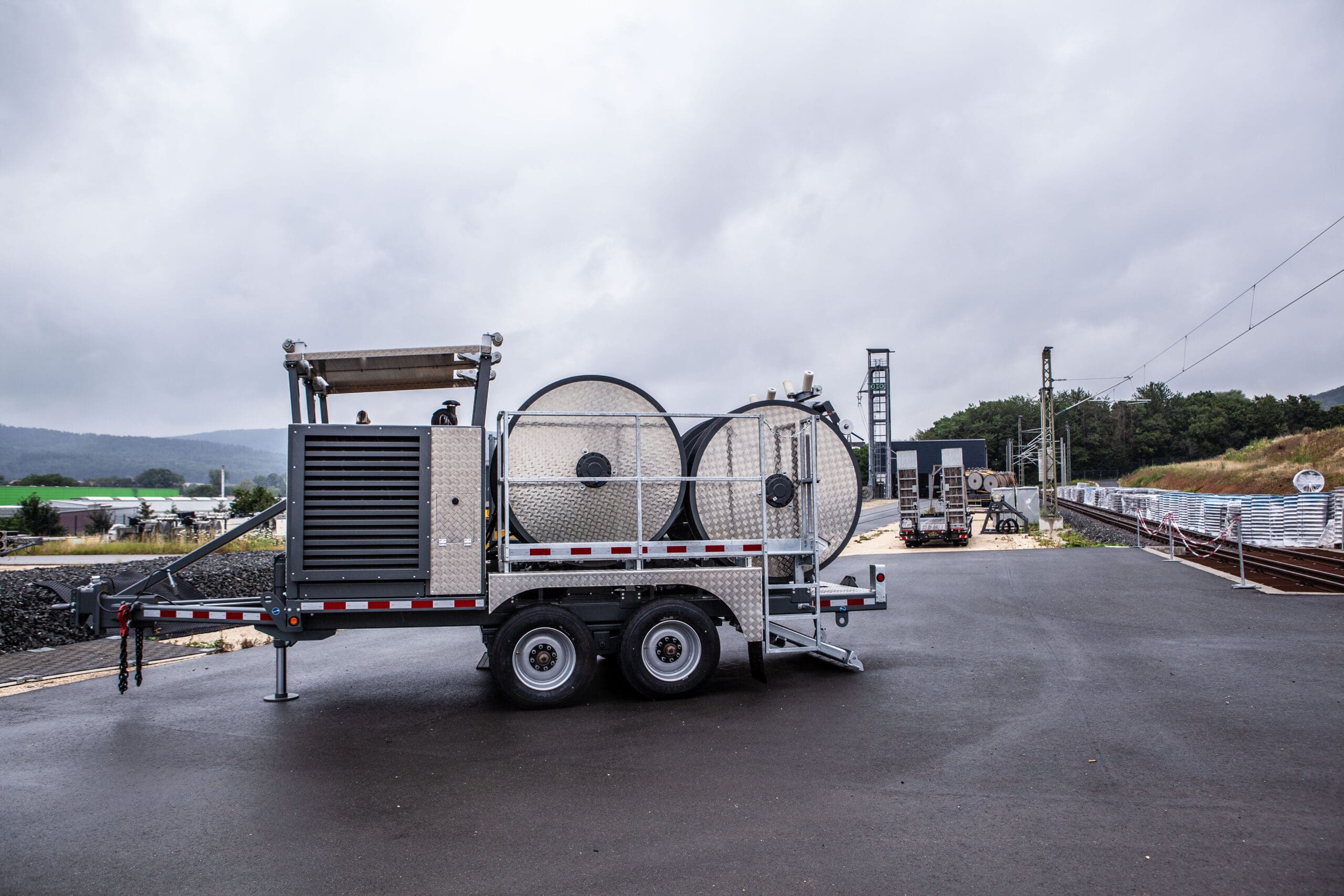

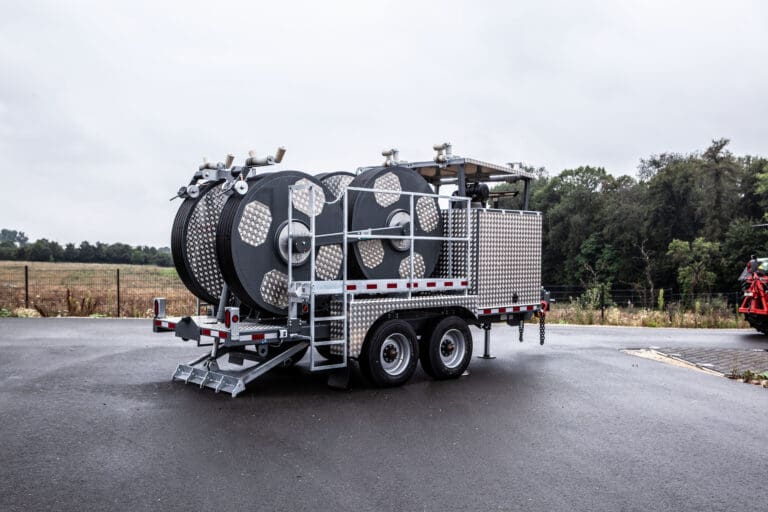

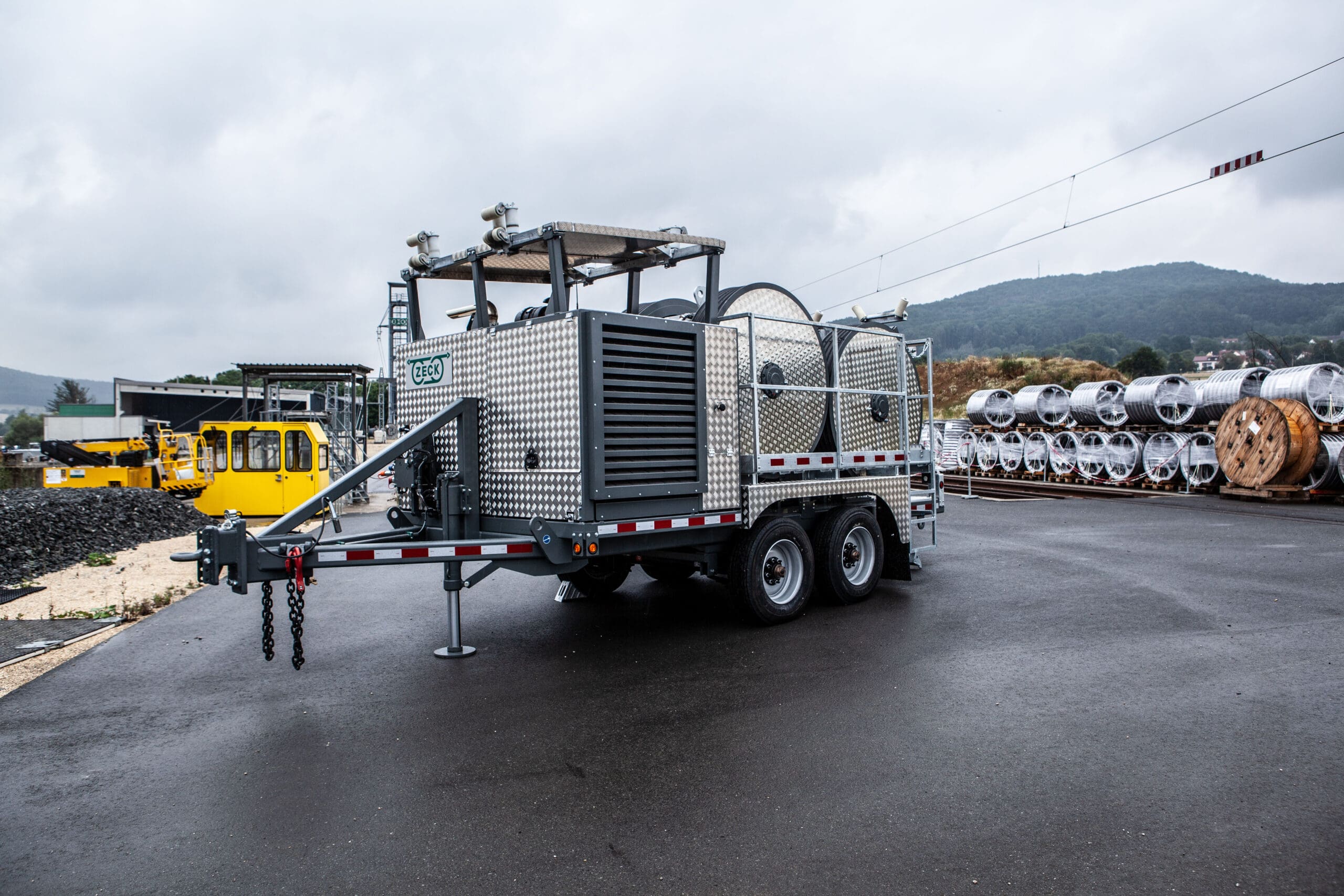

The Zeck WB 1500/9+4.5 Z359 is a completely electronically controlled puller-tensioner for up to 2 (1 + 1) cables with 4 (2 x 2) bull wheels (59 1/16”), with a groove diameter 1 ¾” and a max. pulling and tensioning force of 2 x 10,120 lbs. or 1 x 20,240 lbs. Each bull wheel can be controlled individually.
Our favorite features are:
- Electronically controlled puller/tensioner
- Max pull/tension – 1 x 20,200 lbs. / 2 x 10,100 lbs.
- Single or two-bundle ability
- Bullwheel diameter 59 in. with 1.75 in. grooves (45mm)
- Max speed – 4.2 mph
- Dual hyd. planetary drive and brake system
- Lite tensioning mode (slts) for small conductors
- Remote and backup panel controls
- 140 hp. t4f diesel engine
Shown with Load King Stackable Anchor Weight Box
- Manual Front Plow (Pins down for use on the ground, Pins up for transport and stacking)
- (2) front & Rear anchor D-Rings
- Forklift Pockets
- Galvanized Finish
- 7,500 lbs. Average weight
- 70” long
- 53” wide
- 25” tall
