Click here to view a full spec sheet.

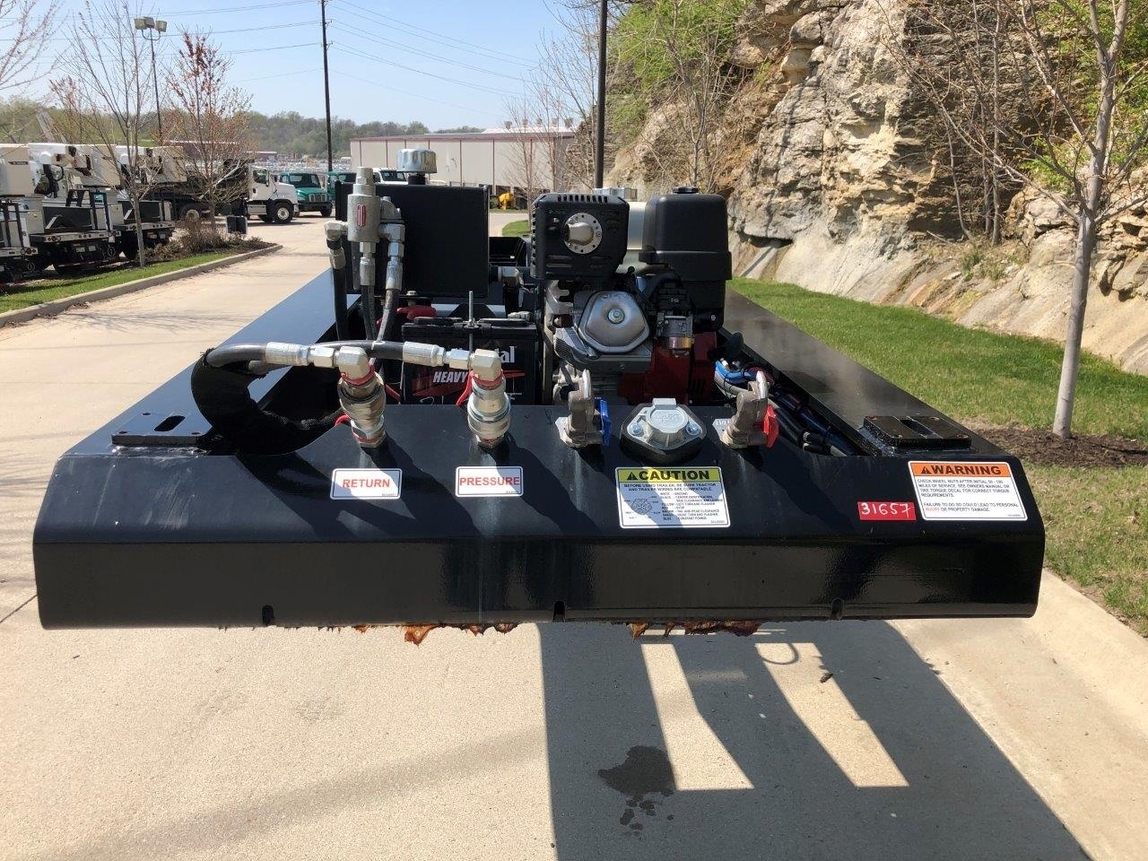

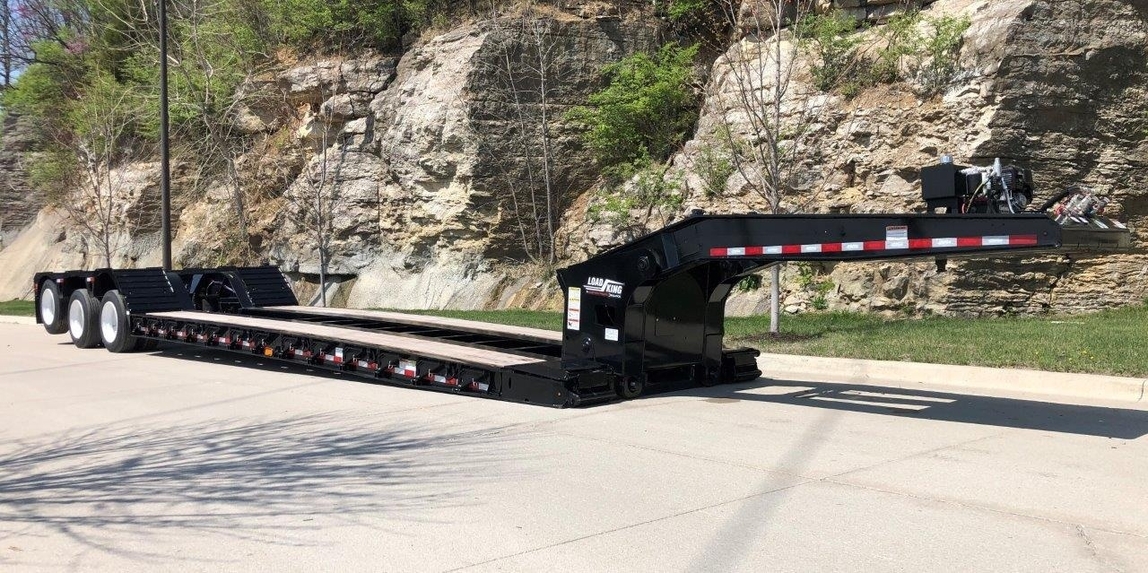

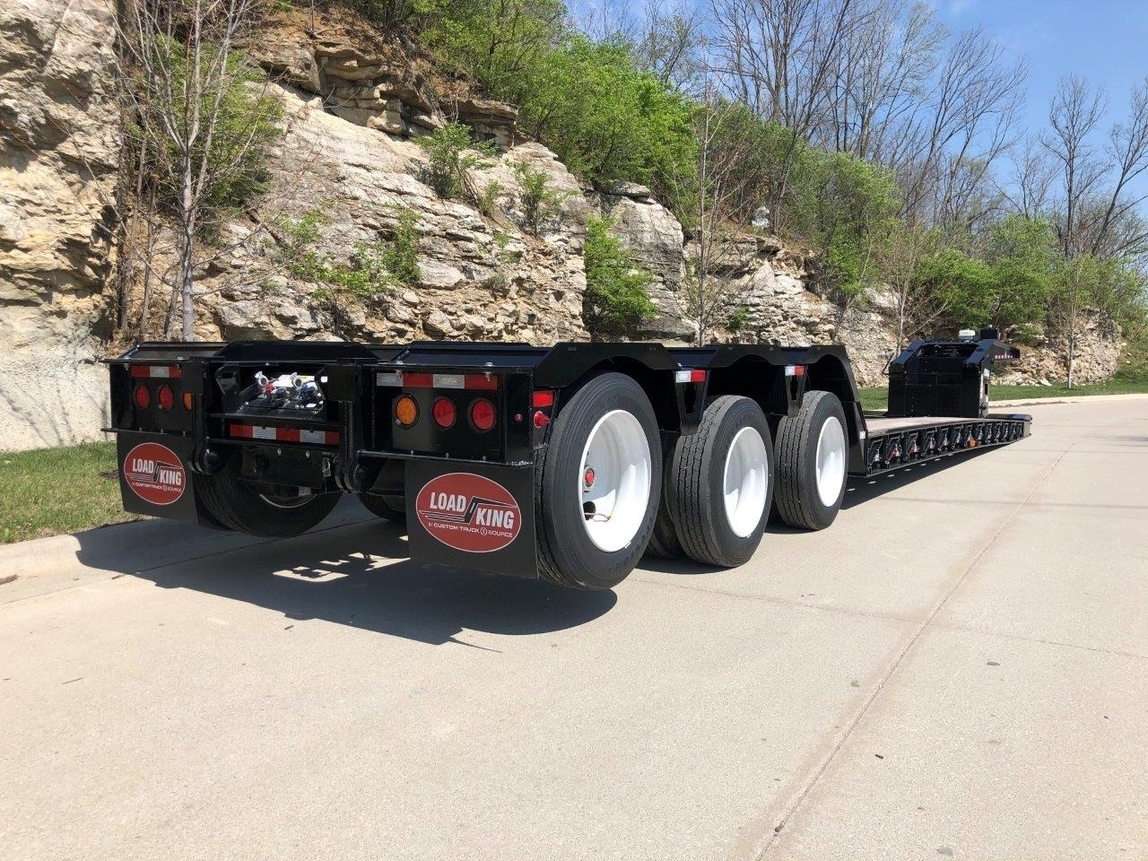

The Load King 55-ton Signature Series hydraulic detachable gooseneck trailer is equipped with an 18″ loaded deck height, stinger bar and flip axle capacities. The estimated weight of the trailer is 22,645 lbs. with a 26′ deck and 53′ in length. The 503-554-SS-SF gooseneck offers reliability, safety, and quality transportation to meet customer expectations. All Load King Signature Series trailers are equipped with spring-assisting flip ramps.
Some of our favorite features are:
- Load Capacity: 55 tons
- Overall Length: 53 ft.
- Overall Width: 102”
- Weight: 22,645 lbs.
- Concentrated Rating: 110,000 lbs. in 12 ft.
- Gooseneck: 12’ 9” Low Pro, High Relief Neck
- Swing Clearance: 110” & 86”
- Fifth Wheel Height: 52”
- Deck Length: 26’ Clear Level Deck w/ Upper Flange Reinforcement
- Loaded Ground Clearance: 18 in. LDH
- Crossmembers: 8” & 4” Alternating on 12” centers
- Full Depth Swing Out, Outriggers: 13 pairs (Removable)
- Bent D-Rings: 6 per side
- Outer Flanges Chain Slots: 13 pairs

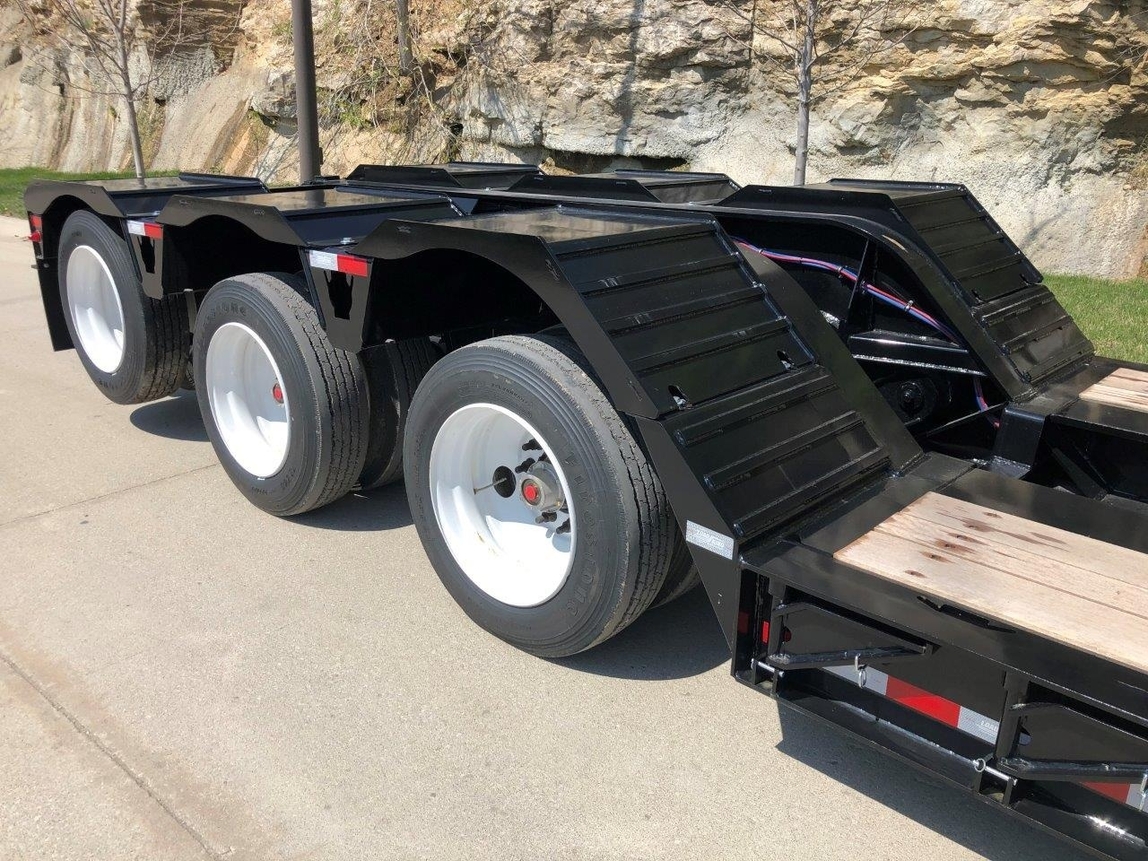

- Axle Capacity: (3) 27,500 lb axles
- Air-Ride Suspension: Hendrickson
- Axle Spacing: 54.5”
- Tires: 255/70R22.5

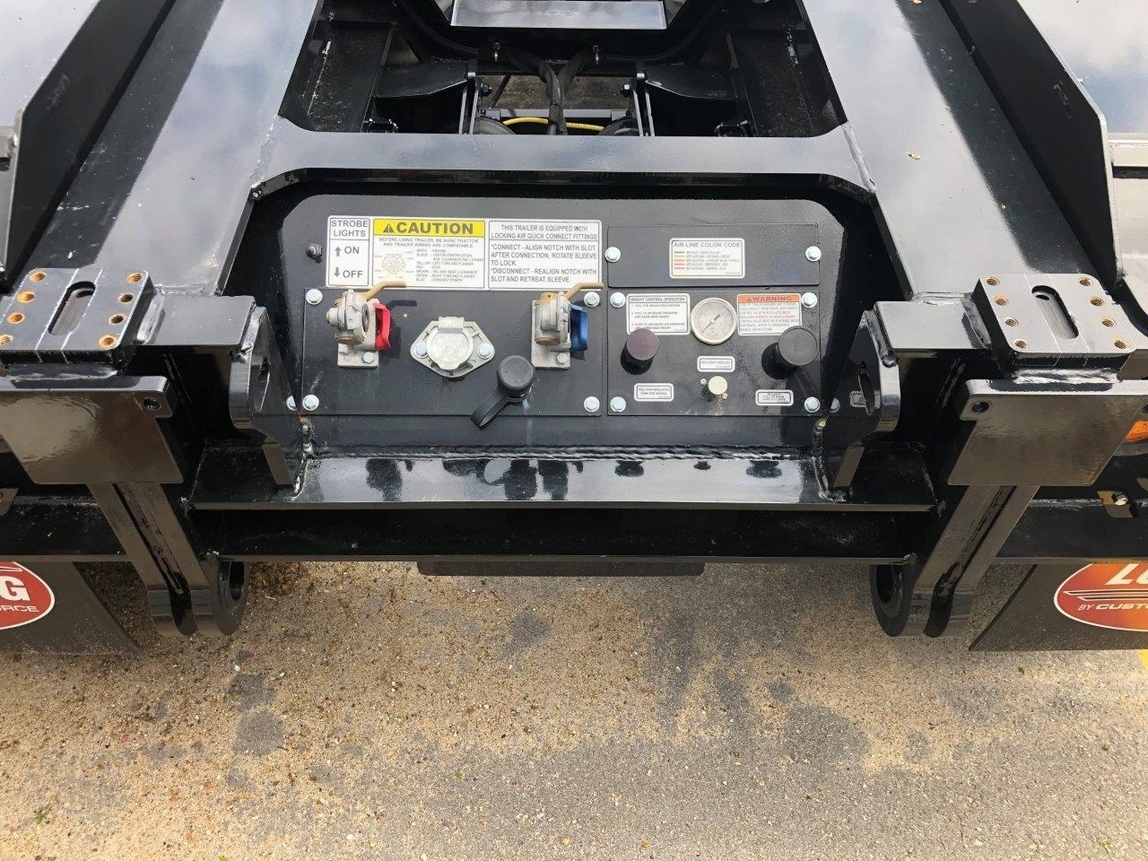

- Lights: 3rd tail light package w/ strobes
